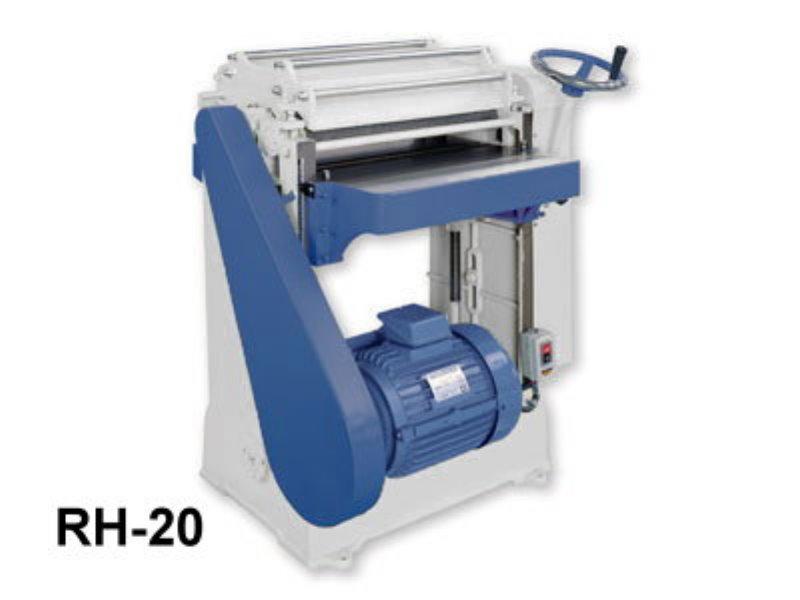

| MODEL | RH-20 |
| Maximum planning width | 508MM(20”) |
| Maximum planning thickness | 180mm |
| Minimum planning thickness | 1.5mm |
| Number of knives | 9 pcs |
| Single cutterhead speed | 5200 RPM |
| Cutterhead diameter | 77mm(3”) |
| Feeding speed | 8M/min |
| Table size | 720x400mm (28 ½”x20”) |
| Working motor | 3HP |
| Machine size | 920x890x1100mm |
| Machine N.W./G.W. | 355kgs/450kgs |
| *All specification and design characteristics shown in this catalogue are subject to change without prior notice | |
