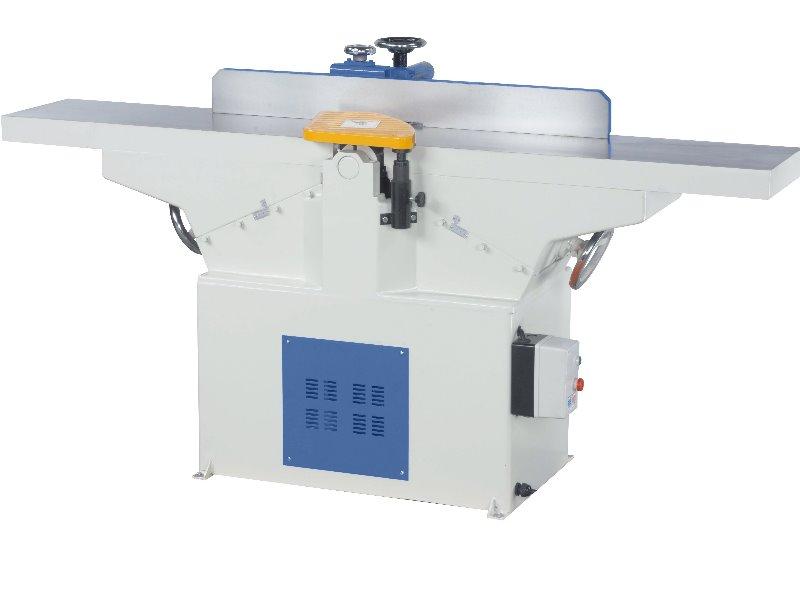

| MODEL | RH-612 | |
| Table area | 305x1820mm | |
| Spindle speed | 5300RPM | |
| Spindle diameter | 100mm | |
| Cutterhead motor | 2HP | |
| Knives | Straight cutterhead | 3 |
| Helical cutterhead | 6 SLOTS / 78 pcs | |
| Knife sizes | Straight cutterhead | 305x30x3mm |
| Helical cutterhead | 14x14x2.0mm | |
| Fence size | 110x990mm | |
| Net weight | 330kgs | |
| Gross weight | 410kgs | |
| Packing size | 184x60x95cm | |
| Machine dimensions | 188x60x99cm | |
| *All specification and design characteristics shown in this catalogue are subject to change without prior notice | ||
