HOLLOW CHISEL MORTISERS
Add to CompareAdd to Wishlist

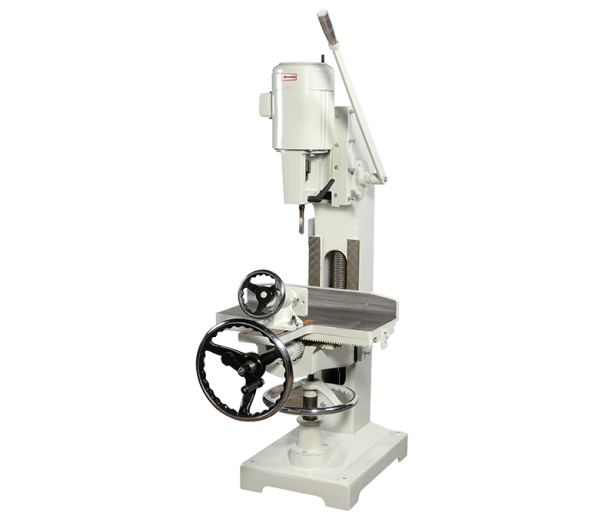

TC-104
Hollow chisel mortisers
Production Information
Hollow Chisel Mortisers
- Manual downfeed of mortising head.
- Manual clamp.
MANUAL OPERATED DOWNFEED HEAD
An economical model. Head stroke is operated by a spring loaded hand lever to minimize fatigue for operator. Built-in fan keeps the work free from chips.
| MODEL | TC-104 |
| Chisel Range | 1/4” to 3/4“ |
| Table | 16-3/4” x 21-1/4” |
| Table cross traverse | 5” |
| Table longitudinal traverse | 18” |
| Table vertical traverse | 12” |
| Head drive | Manual |
| Clamp drive | Manual |
| Chuck capacity | 1-1/8” |
| Spindle speed | 3400RPM |
| Maximum stock width | 12” |
| Maximum mortising depth | 4” |
| Head motor | 1 HP / 2 HP |
| Hydraulic pump motor | – |
| Net weight | 240kg |
| Gross weight | 310kg |
| Packing dimension ( L x W x H ) | 70 x 96 x 166 cm |
| *All specification and design characteristics shown in this catalogue are subject to change without prior notice | |
