SCM-120

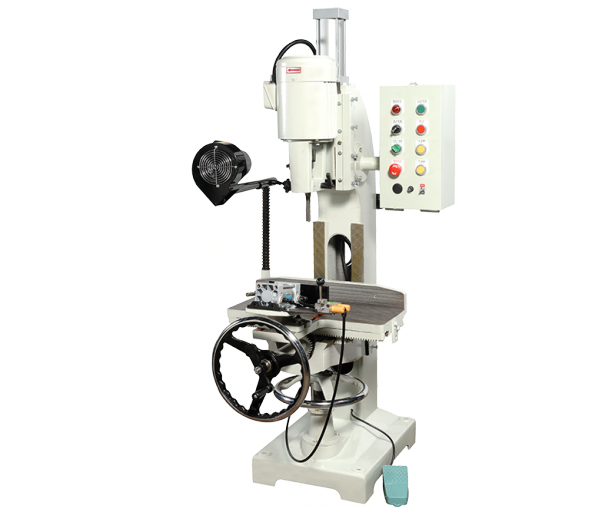

Pneumatic Hollow Chisel Mortiser

Production Information

Pneumatic Hollow Chisel Mortiser

PNEUMATIC POWER STROKE HEAD

Power strok of head permits easy, fast and accu-rate successive cuts. Separate fan blower to keep works clean free from dust and chips.

MODEL	SCM-120
Chisel Range	1/4” to 3/4“
Table	16-3/4” x 21-1/4”
Table cross traverse	5”
Table longitudinal traverse	18”
Table vertical traverse	12”
Head drive	Pneumatic
Clamp drive	Pneumatic
Chuck capacity	1-1/8”
Spindle speed	3400RPM
Maximum stock width	10”
Maximum mortising depth	4”
Head motor	1 HP / 2 HP
Hydraulic pump motor	–
Net weight	260kg
Gross weight	330kg
Packing dimension ( L x W x H )	88 x 96 x 178 cm
*All specification and design characteristics shown in this catalogue are subject to change without prior notice
