RH-422R DOUBLE ENDED CIRCULAR SAWING

/

RH-422R DOUBLE ENDED CIRCULAR SAWING

Add to CompareAdd to Wishlist

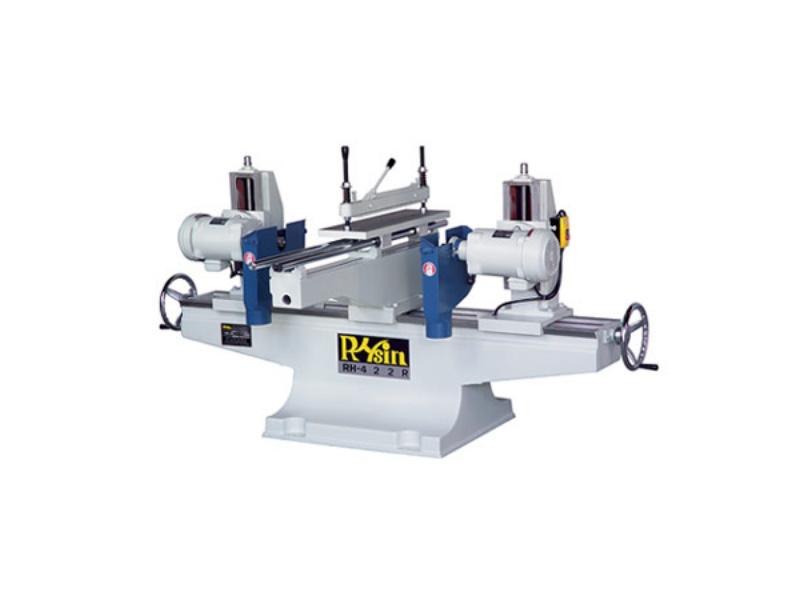

  1. The picture shown is a manual model.
  2. Sawblades are equipped at both ends for cutting wood to size.
  3. Cutting length up to 8 feet.
  4. Two rails configuration. Round rod slideways ensure extremely smooth feed motion and accurate cutting.
  5. When requested, a manually-controlled air clamp is available for operational convenience. (optional)
  6. A custom model with over 8 feet capacity is available.
Categories: , ,
Description
MODEL RH-46A RH-66A RH-86A
Processing Length 250~1220 mm 500~1850 mm 500~2440 mm
Processing width 580 mm
Sawblade diameter (option) 10” ~ 14” (Ø 25.4 mm)
Tilting degree of sawblade and moulding spindle 360°
Turning speed of circular sawing blade 3000 RPM
No. of rails 1 Set 2 Set
Motor of circular sawing blade 2 HP x 4
N.W./G.W. 550 / 670 kg 750 / 950 kg 980 / 1140 kg
Machine size 2230 x 1360 x 1100 mm 2950 x 1360 x 1100 mm 3450 x 1360 x 1100 mm
Shipping size 2050 x 950 x 1400 mm 2820 x 900 x 1400 mm 3500 x 900 x 1400 mm
*All specification and design characteristics shown in this catalogue are subject to change without prior notice
