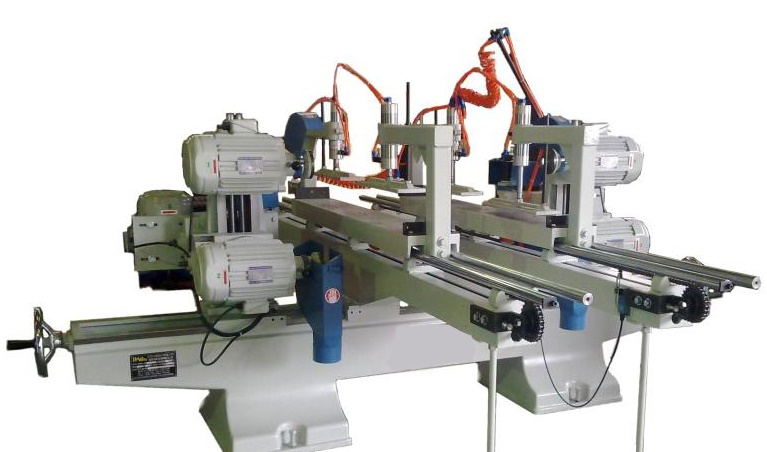

RH-646ART DOUBLE ENDEDUPPER & LOWER SAW WITH SHAPER

Add to Compare

Add to Wishlist

1.Sawblades and molder cutters are equipped at both ends providing trimming, size cutting, molding and tenoning operations-all quickly done in a single pass.

2.Standard models provide 4~8 feet length capacity to choose from. A custom model with over 8 feet capacity is available.

3.Separately mounted control box allows for moving into any position as desired.

4.Foot switch facilitates operational control. Feed speed is micrometrically adjusted.

5.Sawblades, cutting tools, automatic workpiece outfeed and manually operated air clamp cylinder are optional equipment.

Description

MODEL	RH-446AR	RH-646ART	RH-846ART
Processing Length	230 ~1220 mm	500~1850 mm	500~2440 mm
Processing width	1200 mm
Sawblade diameter (option)	255 mm (10”)10” ~ 14”
Tilting degree of sawblade and moulding spindle	360°
Turning speed of circular sawing blade	3000 ~ 3300 RPM , 50 ~ 60 HZ
No. of rails	1 Set	2 Set	2 Set
Motor of circular sawing blade	2 HP x 4
Shaper motor	3 HP x 2
Diameter of vertical shaft	Ø 30 mm (Standard specification)
Turing speed vertical shaft	6600 ~ 7200 RPM 50 ~ 60 HZ
*All specification and design characteristics shown in this catalogue are subject to change without prior notice
