ULTRA-HIGH-SPEED SERVO

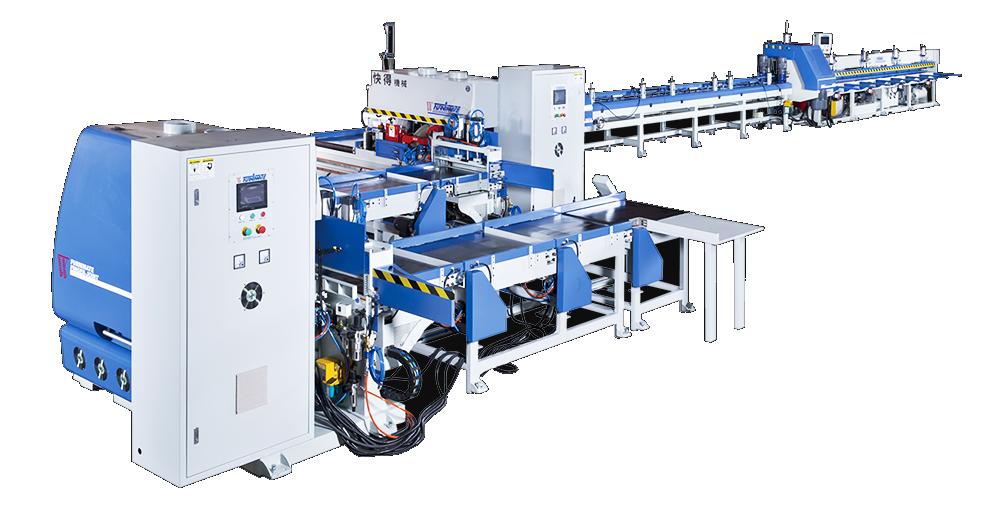

Ultra-high-speed servo type fully auto finger joint system (Mass production)
Carriage move speed:80M/120M 7.8 cycle/min
(Calculated by vertical/working size:23MMx50MM)
Standard maximum performance-196 pcs/min
Features:
The unique design of SAT breakthroughs the traditional mode. We change to use Servo Drive Control to enhance machine speed and stability. Let wood material with high accurately precision and verticality. Therefore, you can produce the highest and stability material to save more material those might be wasted while processing.
| MODEL | H | F |
| Specification / Configuration | 150(120) mm ~ 800(1000) mm | |
| Working length | 25 mm ~150(205)mm | |
| Working width | 15 mm ~ 90 mm | |
| Working thickness | 62.4 M/min | 52 M/min |
| Vertical type capacity 25 x 60 x 400 | 41.6 M/min | 41.6 M/min |
| Horizontal type capacity 22 x 50 x 350 | 660 mm | |
| Shaper’s table width | 22.5 KW/ S (37.5KW/S) | |
| Power of finger spindle | 11.25 KW / S (15KW) | |
| Power of cut-off saw | 2..25 KW | |
| Power of scoring saw | Servo 2.9KW | |
| Power of table movement | 8 / min | |
| Shaper max. cycle speed | Single liquid type injection spreader | |
| Glue spreader type | ● | |
| Shaper wood cutting monitoring device | ● | |
| Shaper abnormal detection system | ● | |
| Pneumatic high – speed solenoid valve | o | |
| Safety fence device | 6.2 M | |
| Finger assembler working length | 7.5 KW | |
| Power of feeding inverter | 7.5 KW | |
| Power of hydraulic pump | 3.75 KW | |
| Power of cut-off saw | 9 | |
| Assembler max. working cycle | ● | |
| Auto cut-length setting device | ● | |
| Assembler abnormal detection system | ● | |
| 6.5M chain type pre-joint feeding system | ● | ● |
| Servo fully auto flipper device | – | ● |
| Infinite finger joint assembler machine | – | |
| *All specification and design characteristics shown in this catalogue are subject to change without prior notice | ||
- = Standard / o(—) = Optional / – = No configuration / F = Fully automatic configuration /
- H = Configure the pre-joint system / B = Configure rear feeding conveyor system /
- C = Simple Conveyor Configuration / 2L = Double finger assembler configuration
