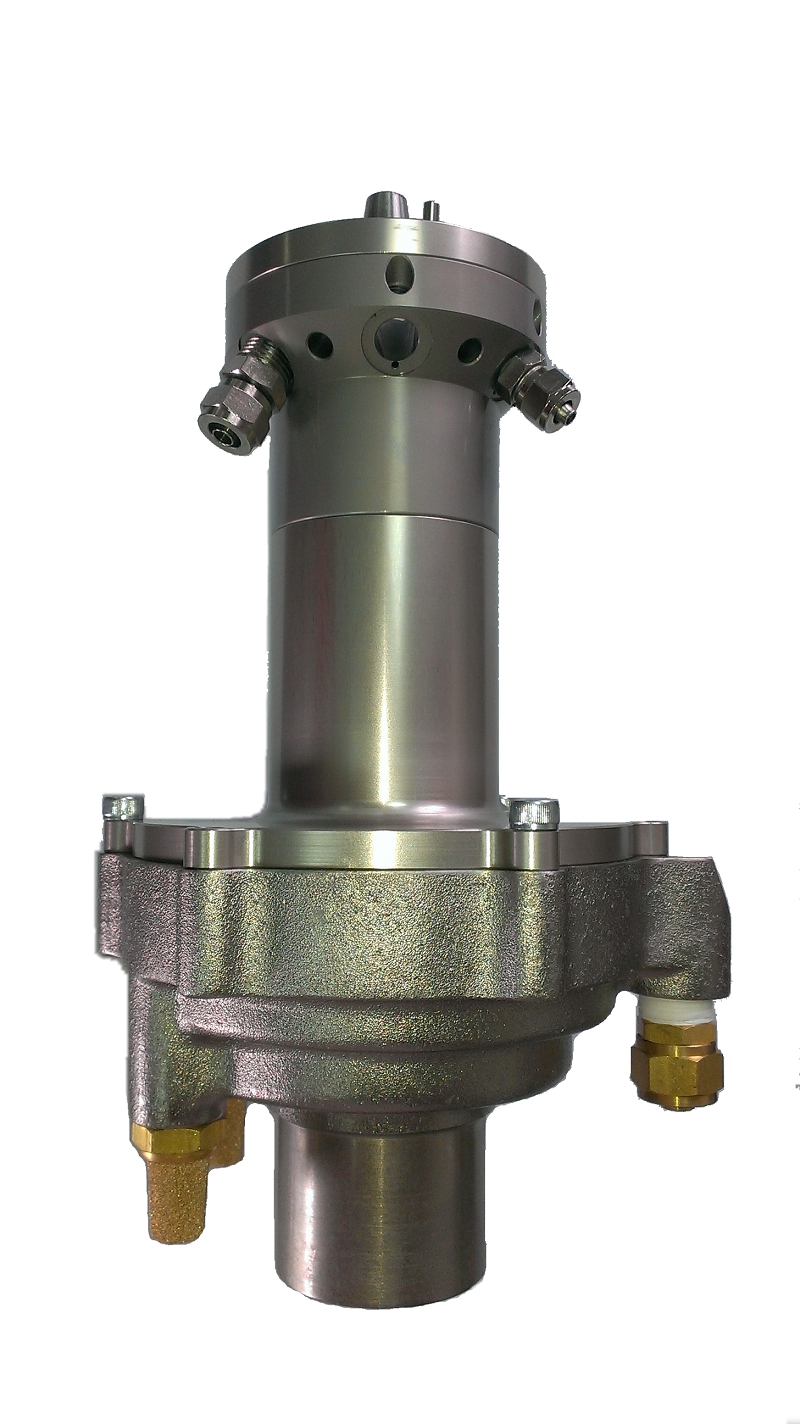

Disk series
Add to CompareAdd to Wishlist
Features
1.The disk coator is suitable for high volume production painting application with geometrical dimension allowing guidance on an almost circular path around the disk coator. Dimension allowing guidance on an almost path around possible is really.
2.Application the equipment is apply to fluid electrostatic coating for wooden-furniture , metal part , bicycle part , chair or frame spraying
Specifications
|
Disk series |
|
| Model | WPAM-05 |
| Disk Diameter | 100mm , 170m , 220mm |
| Max. Rotational Speed | 35000rpm |
| Operation Voltage | 0-60KV |
| Shaping Air Consumption | 20-500Nl/min |
| Rotary Air Consumption | 100-1000Nl/min |
| Paint Fluid | 0-500cc/min |
| Dimension | Φ128 mm x L260 mm |
| Weight | 2.84kg |
| *All specification and design characteristics shown in this catalogue are subject to change without prior notice | |
