Fluid Convey Gear Pump
Add to CompareAdd to Wishlist
Features
1.A fixed volume of paint or fluid can be set for the delivery purpose,with the combination use of motor and converter will generates the best outcome.
2.For special paint or fluid, K-pump can be customized accordingly.
Pump Size
Specifications
|
Fluid Convey Gear Pump |
|
| Paint outlet size | 3/8″ pt ( f ) |
| Paint inlet size | 3/8″ pt ( f ) |
| Temperature range | 5-70 ℃ |
| Max rotation speed | 250 RPM |
| Material | SKD11 |

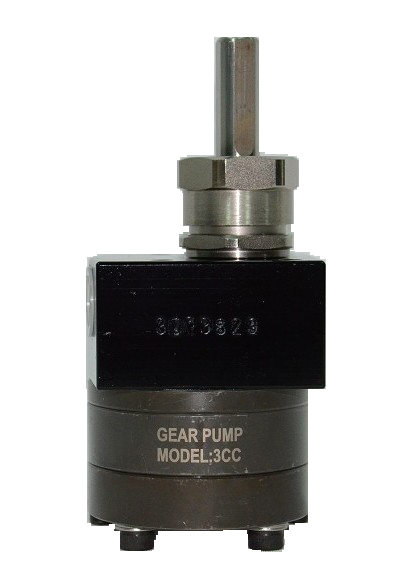

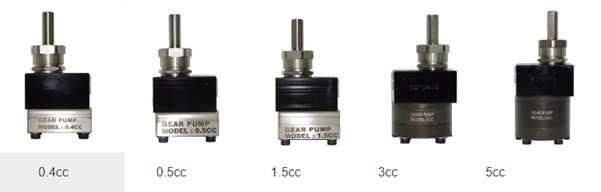

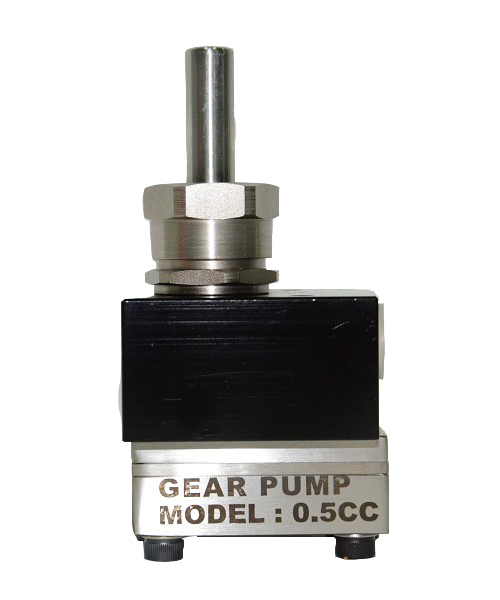

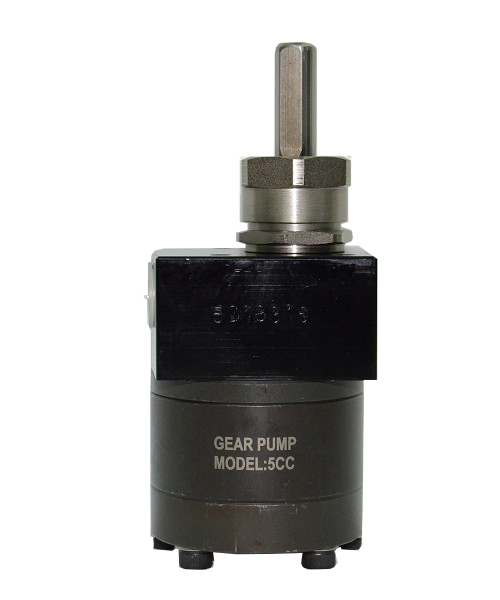

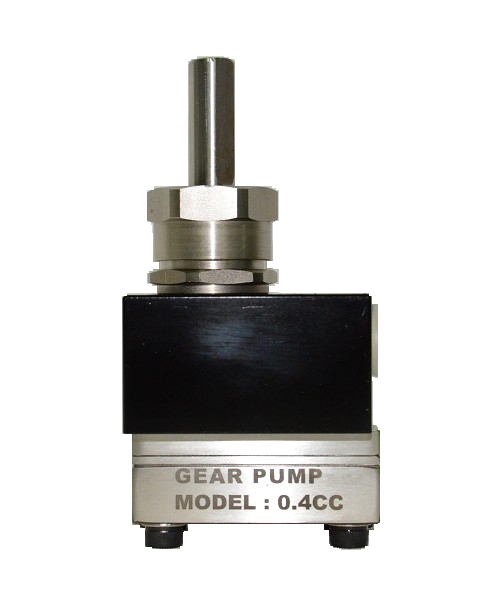

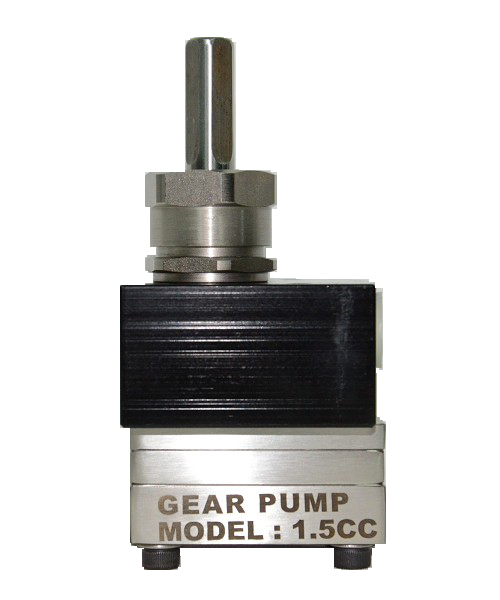

| Pump size | 0.4cc 131 x 64mm 1.6 kg 0.5cc 131 x 64mm 1.6 kg 1.5cc 137 x 64mm 1.7 kg3cc 143 x 64mm 1.85kg 5cc 155 x 64mm 2.05kg |
| *All specification and design characteristics shown in this catalogue are subject to change without prior notice | |
