เครื่องตัดไม้ OPTIMIZING CUT OFF PUSH
SC-303
OPTIMIZING CUT OFF MACHINE-PUSH TYPE
A profitable performer for safe, high speed and high-efficiency production.
A wide variety of cutting modes to meet your flexible cutting requirements.
Lower labor cost and time cost! Increase production efficiency and economic benefits!

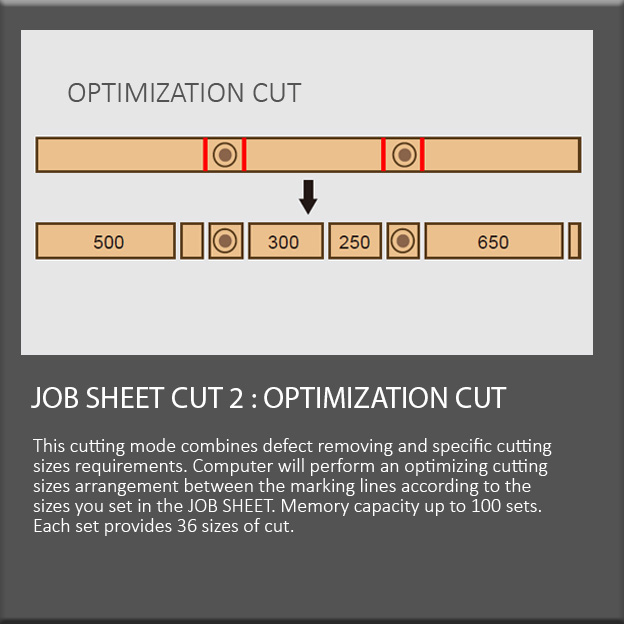

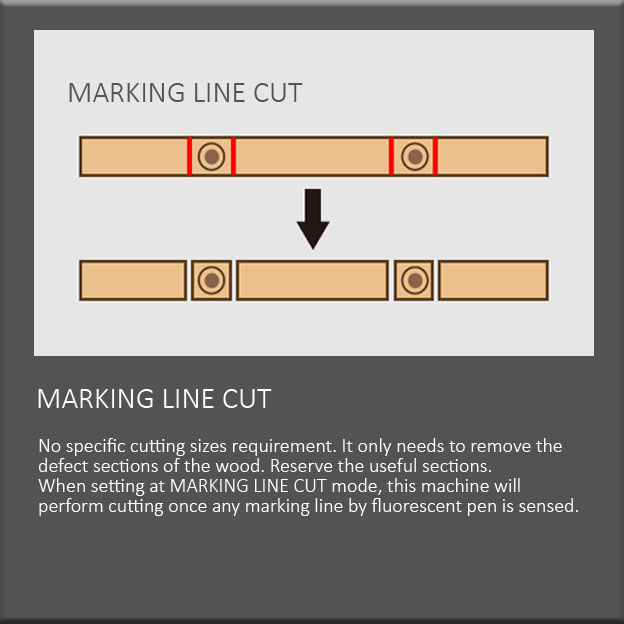

*This machine uses a fluorescent crayon for marking, incorporated with a photocell sensor to detect defective parts automatically.
* High-performance AC servo motor drives the infeed conveyor system, providing precise positioning of the workpiece.
*Multiple languages displays Chinese, English and other languages(Option).

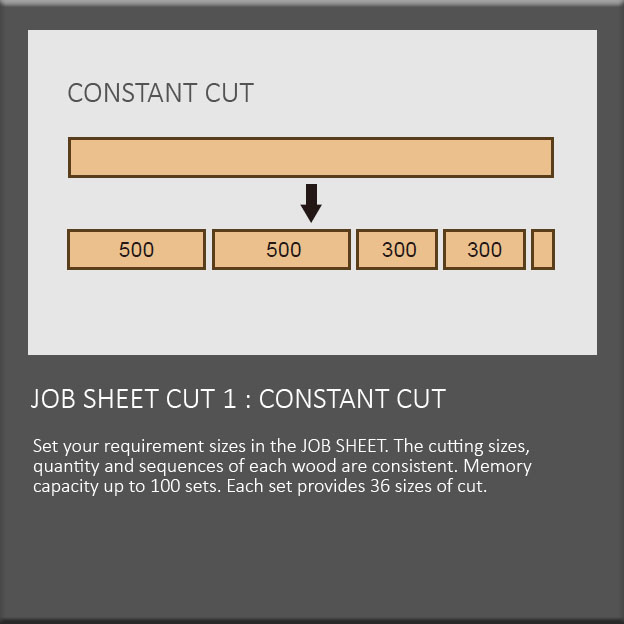

*Various lengths and quantities of cut can be set as desired. Data can be memorized.
(36 sizes in a Job Sheet. Total 100 Job sheets)

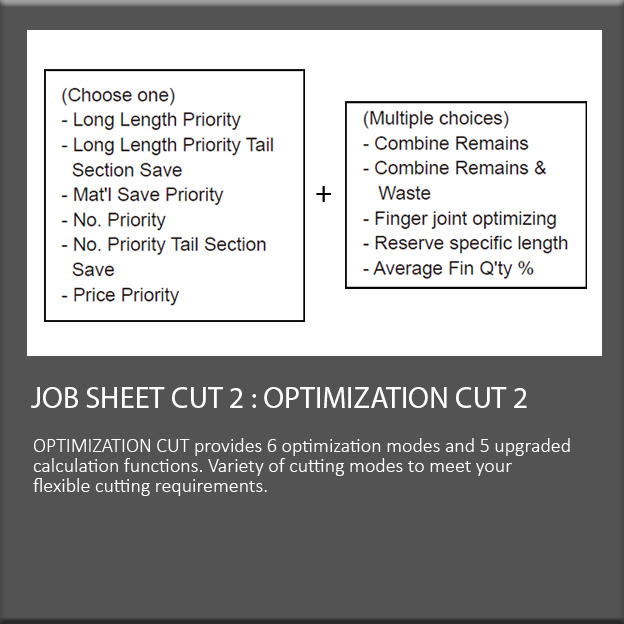

*Variety of cutting modes to meet your flexible cutting requirements.
| MODEL | SC-303 |
| Cutting thickness | 12~115mm |
| Cutting width | 40~300mm |
| Min. cutting size | 50mm |
| Min. Infeed length | 170mm |
| Min. timber cross section | 40x12mm |
| Max. timber cross section | 300×60/220x115mm |
| Max. feeding speed | 100 M/min |
| Cutting speed (Note1*) | 78pcs/per minute |
| Sawblade diameter | Ø 505mm(20”) |
| Saw arbor diameter | Ø 25.4mm(1”) |
| Spindle speed | 3400rpm |
| Feeding servo motor | 1.73HP(1.3kW) |
| Saw drive motor | 15HP |

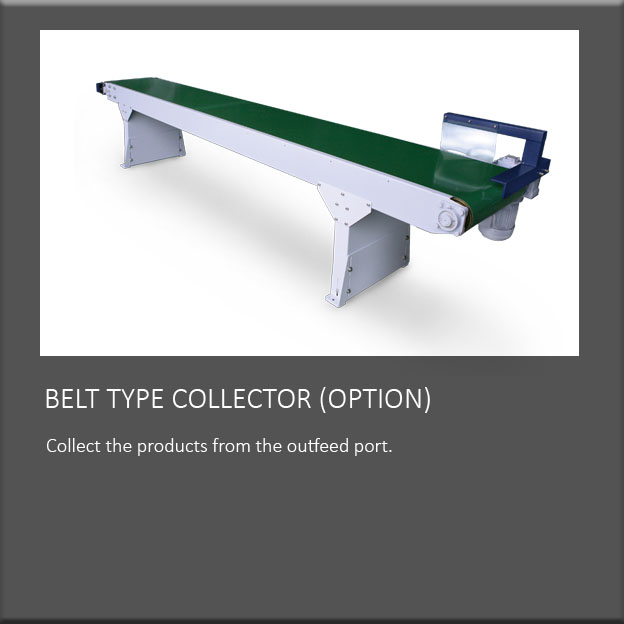

| Outfeed motor | OPTION |
| Air pressure | 5~6 kg/cm2 |
| Dust hood outlet diameter | 100mm(4”)x2 |
| Machine dimensions (L x W x H) | 9500x1250x1700mm |
| Machine net weight (Approx) | 1200kgs |
| Machine gross weight (Approx) | 1400kgs |
| Note1* When the original wood length is 6M, thickness is 50mm, the constant cutting length is 50mm | |
| *All specification and design characteristics shown in this catalogue are subject to change without prior notice | |
