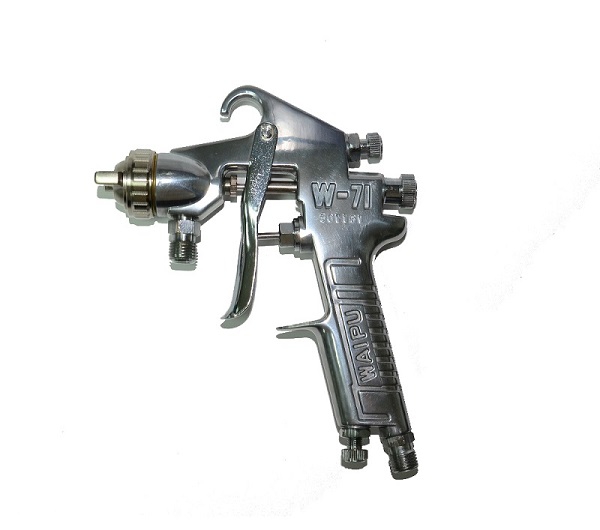

Portable Air Atomization Spray Gun W-71P
Add to CompareAdd to Wishlist
Features
1.Ease of operation, Services easily.
2.Suits the production line use.
3.The painting condition hypothesis is simple.
4.The structure is simple, cleans fast.
Application
1.For the wooden furniture , metal , plastics , leather liquid coating.
2.Can use in the color paint, sealer , top coat spray. Save paint, spray even, high atomizing.
Specifications
|
Portable Air Atomization Spray Gun W-71P |
| Air cap | E-type Silver | Uses in the big width breadth , can use to paint cup or pump, the atomizing effect is worse.
suitable for sealer painting. |
| M-type Blue | The width breadth is smaller, can for paint cup or pump, the atomizing effect is good. | |
| N-type Stainless color | Only use to the paint pressure (as pump or paint tank),its atomizing effect surpasses M-TYPE. |
| Body | W-71P |
| Air cap | E-Type |
| Fluid supply type | G.P.S (G=Gravity / P=Pressure / S = Suction) |
| Bore of nozzle | 1.0 , 1.3 , 1.5 , 1.8 mm |
| Paint cup | 1000 cc/ 600 cc |
| Gravity | 150 cc / 250 cc / 400 cc. |
| Air inlet size | 1/4″PS(m) |
| Paint inlet size | 1/4″PS(m) |
| Paint pressure | 4 kg/cm ² |
| Spray flow | 1 ~ 450 cc/min |
| Max air pressure | 7 kg/cm ² |
| Adj. width breadth | 50 ~ 250 mm |
| Automizing pressure | 2~4 kg/cm ² |
| Air consumption | 80 ~ 280 L/min |
| Material of gun | Aluminum/Copper |
| Material of nozzle & tip | SUS304 |
| Net weight | 460g |
| Gun size | L190 * W140 mm |
| *All specification and design characteristics shown in this catalogue are subject to change without prior notice | |
