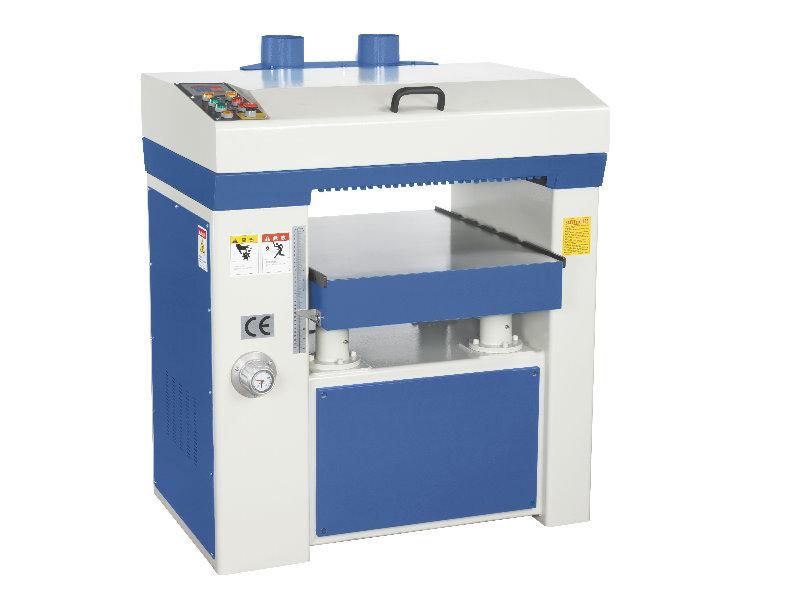

AUTO PLANER MODEL RH-AN926

MODEL		RH-AN-926
Table area		660x920mm
Max. planning width		660mm
Max. planning thickness		300mm
Min. planning thickness		3mm
Max. cutting depth		9mm
Knives	Straight cutterhead	4
	Helical cutterhead	6 Slots/168pcs
Knife sizes	Straight cutterhead	660x30x3mm
	Helical cutterhead	14x14x2.0mm
Cutterhead speed		5000rpm
Cutterhead diameter		100mm/125mm
Cutterhead motor		10HP
Elevation motor		1/4HP
Feed speed		5-20m/min
Feed motor		1HP
Net weight		800kgs
Gross weight		880kgs
Packing size (LxWxH)		125x100x150cm
Machine size (LxWxH)		115x92x135cm
*All specification and design characteristics shown in this catalogue are subject to change without prior notice
