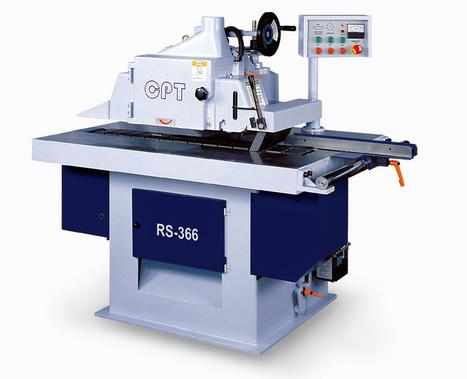

RS-366

STRAIGHT LINE RIP SAW

Integrating glue jointing application and trimming for your choice.

A straight line rip saw designed to meet versatile applications.

Take a measurement! Perfect straightness is not just a slogan.

*Pressure rolls, supported on both sides, hold stock stably and evenly.

*Entire head mechanism features powered raising and lowering.

*Front guard supplied for added safety during thin stock cutting.

*Large, solid pressure plate holds stock firmly.

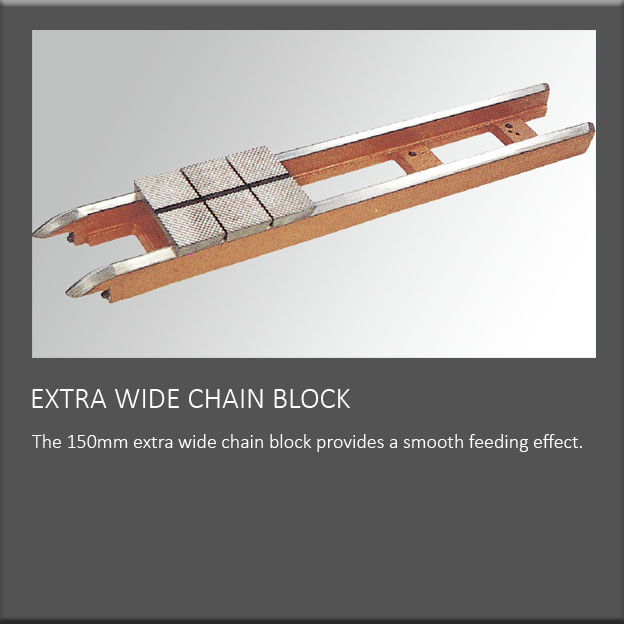

*Durable chain ensures positive workpiece feeding and provides permanent straight line ripping accuracy.

*Variable feed speed permits the cutting of a variety of stock,hard or soft, thick or thin.

MODEL	RS-366
Max. cutting thickness	100 mm (4”)
Min. cutting length	250 mm / 200 mm (option)
Feed speed (Variable)	16~28 m/min
Saw blade diameter (Cutting thickness)	Ø 305 (10~100) mm
Sawblade arbor diameter	Ø 25.4 mm (1”)
Distance between saw and column	365 mm (14 ¾”)
Spindle speed	4100 RPM
Saw driver motor	10 HP (15 HP opt.)
Feed motor	1 HP
Dust hood outlet dimensions	Ø 125 mm (5”) x 1
Table area (L x W)	1330 x 925 mm
Table height from floor	850 mm ( 32 ½”)
Pressure rollers	4
Machine dimensions ( L x W x H )	1600 x 965 x 1400 mm
Packing dimensions ( L x W x H )	1600 x 1100 x 1600 mm
Net weight ( Approx )	935 kgs
Gross weight ( Approx )	1150 kgs
*All specification and design characteristics shown in this catalogue are subject to change without prior notice
