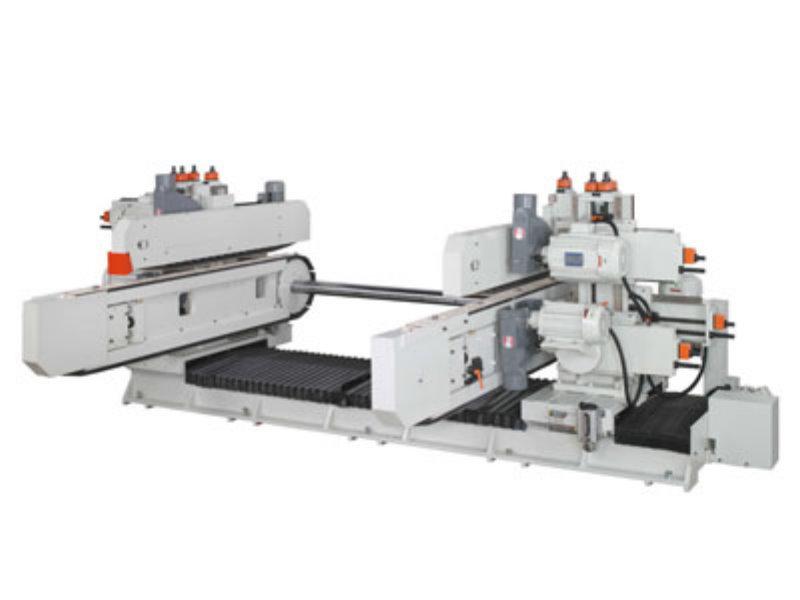

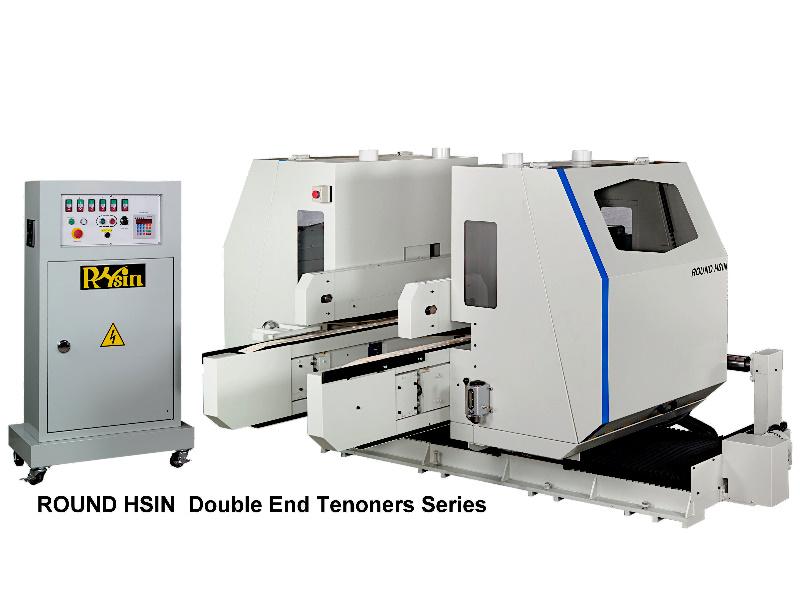

AUTOMATIC DOUBLE END TENONER
Add to CompareAdd to Wishlist
AUTOMATIC DOUBLE END TENONER
- Equipped with precision ball screw and linear guide ways for fast adjustment of width and high accuracy positioning.
- The chain employs sealed needle bearings with special material of shaft, featuring high tensile strength.
- Feed speed is controlled by a frequency inverter, providing wide speed range.
- All cutterheads are equipped with digital meters for convenient adjustment and
| MODEL | RH-46AJ | RH-66AJ | RH-86AJ | |
| Working width | 230 ~1250 mm | 230 ~1850 mm | 230 ~ 2450 mm | |
| Working thickness | 75 mm | |||

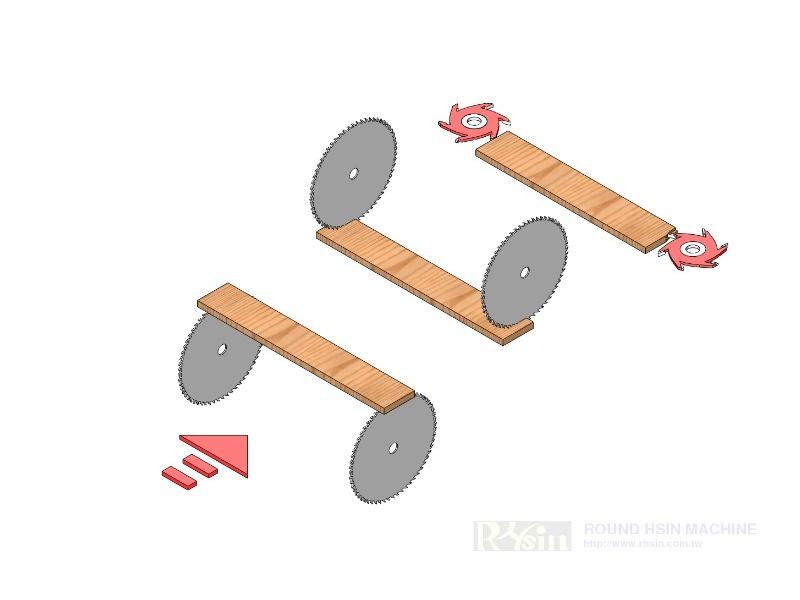

| Working units | 6 pcs | |||
| Scoring saw motor | 2 HP x 2 | |||
| Main saw motor | 3 HP x 2 ( 5 HP ) | |||
| Shaper motor | 5 HP x 2 ( 7.5 HP ) | |||
|
Chaintrack system |
Motor horse power | 2 HP | ||
| Feed speed | 4 ~ 16 M/min | |||
| Distance between dogs | 400(200) mm | |||
| Movable side shifting system | Motor horse power | 1/2HP | ||
| Feed speed | 1.5 M/min | |||
| *All specification and design characteristics shown in this catalogue are subject to change without prior notice | ||||
