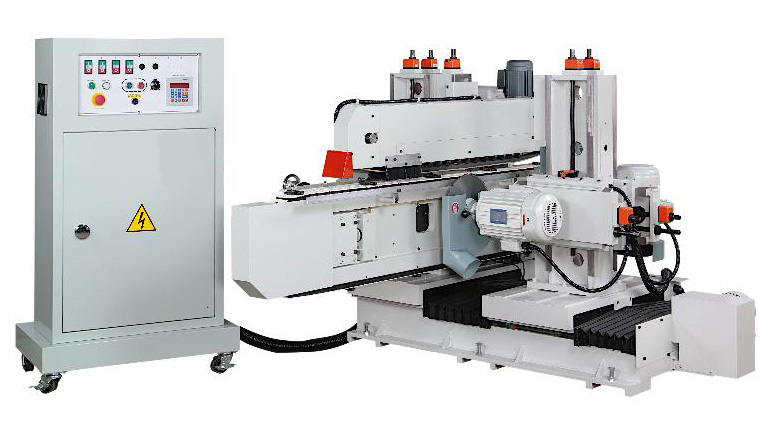

RH-24AJ AUTOMATIC DOUBLE END TENONER
Add to CompareAdd to Wishlist
RH-24AJ AUTOMATIC DOUBLE END TENONER
- Equipped with precision ball screw and linear guide ways for fast adjustment of width and high accuracy positioning.
- The chain employs sealed needle bearings with special material of shaft, featuring high tensile strength.
- Feed speed is controlled by a frequency inverter, providing wide speed range.
- All cutterheads are equipped with digital meters for convenient adjustment and accurate positioning.
| MODEL | RH-24AJ | |
| Working width | 100 ~300 mm | |
| Working thickness | 45 mm | |
| Working units | 4 pcs | |
|
Chaintrack system |
Motor horse power | 2 HP |
| Feed speed | 4 ~ 16 M/min | |
| Distance between dogs | 400(200) mm | |
| Movable side shifting system | Motor horse power | 1/2HP |
| Feed speed | 1.5 M/min | |
| *All specification and design characteristics shown in this catalogue are subject to change without prior notice | ||
