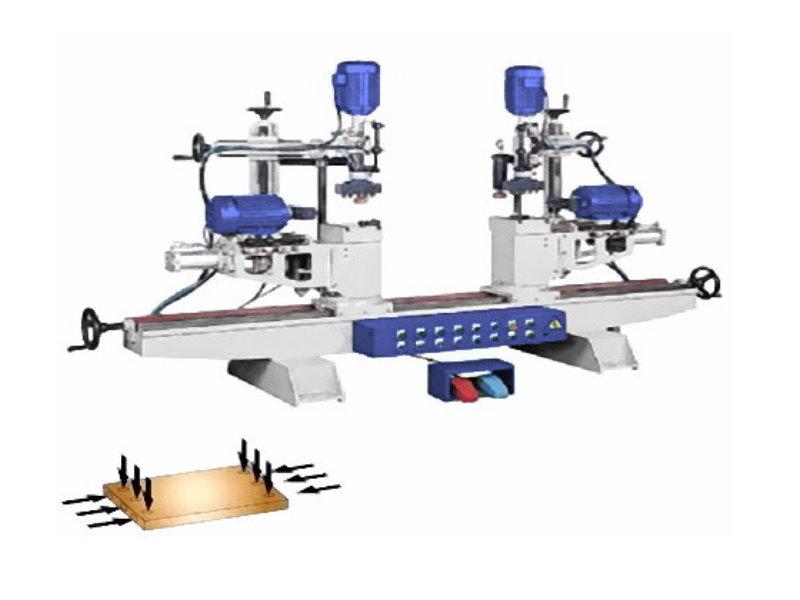

DOUBLE END BORING MACHINE

MODEL	RH-2T2	RH-3T2
Spindle motor (Horizontal)	2HP x 2	2HP x 3
Spindle motor (Vertical)	1 HP	1 HP x 2
Spindle speed RPM	50 HZ – 3000 RPM 60 HZ – 3500 RPM	50 HZ – 3000 RPM 60 HZ – 3500 RPM
Head in line max. distance between drills	2600 mm	2600 mm
Head in line min. distance between drills	280 mm	280 mm
Head at parallel max. distance between drills	2100 mm	2100 mm
Head at parallel min. distance between drills	300 mm	300 mm
Maximum boring depth	80 mm	80 mm
Vertical spindle travel	80 mm	80 mm
Vertical boring stroke travel	60 mm	60 mm
Horizontal spindle travel	100 mm	100 mm
Clamp cylinder	2
Max spindle to table distance	60 mm	60 mm
Air pressure (Horizontal)	5.5 kg / cm²	5.5 kg / cm²
Machine size (mm)	3100 x 830 x 1600 mm	3100 x 1000 x 1600 mm
Packing size (mm)	3200 x 830 x 1780 mm	3200 x 1080 x 1780 mm
Net weight	800 kg	930 kg
Gross weight	1050 kg	1180 kg
*All specification and design characteristics shown in this catalogue are subject to change without prior notice
