GBS-260

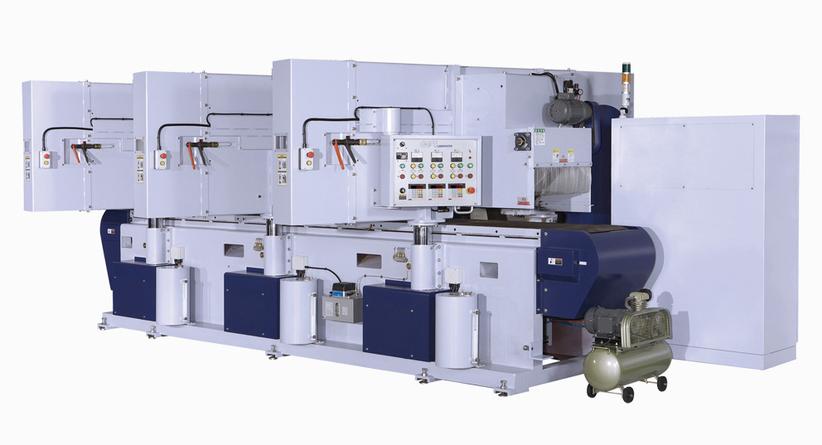

HORIZONTAL BAND RESAW

Ideal for panel resaw and ripping. Fast size setting. Minimum thickness of cut 5mm

( 3mm available upon request )

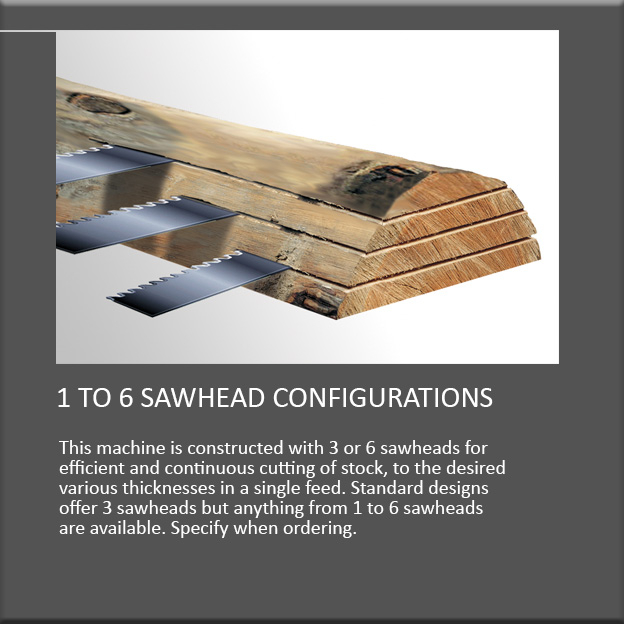

1 to 6 head band saw construction. Various thicknesses of cut can be accomplished simultaneously.

*Cutting capacity–up to 610mm wide and 260mm thick.

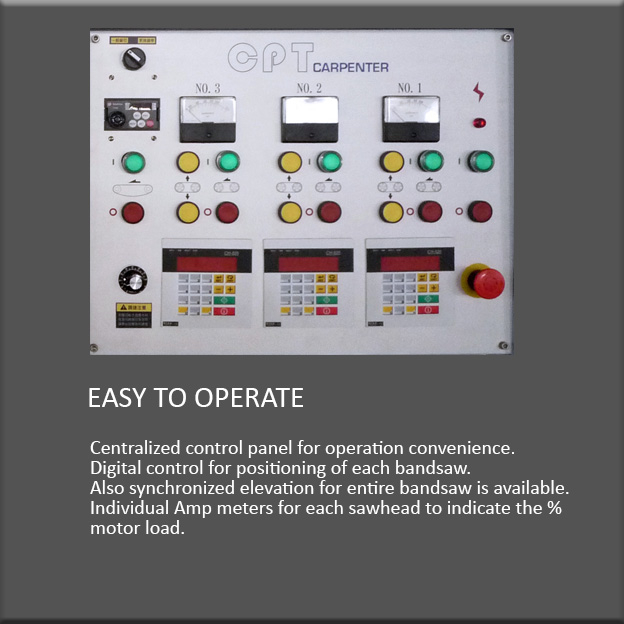

*Full digital controls for variation in thickness and cut.

*Variable feed speed ideal for both hard and soft stock material.

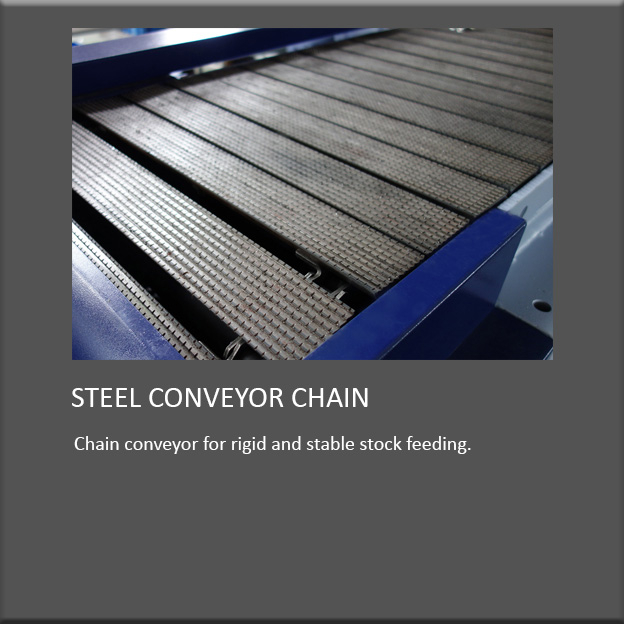

*Chain conveyor for rigid and stable stock feeding.

*Power elevated pressure rollers.

*Automatic lubricators for the sawblade and chain conveyor.

*Individual motor drive for each sawheade for material length longer than 400mm.

MODEL	GBS-260
Stock infeed port	610 mm (W) x 260 mm (T)
Width of cut	60~610 mm
Thickness of cut	3~260 mm
Min. thickness of cut	3 mm
Min. length of stock	920 mm
Feed speed (Variable)	6~24 M/min
Width of chain conveyor	560 mm
Blade size ( W x L )	100 mm x 6500 mm
Wheel diameter	Ø 900 mm
Wheel speed	850 RPM
Bandsaw drive motor	30~40 mm
Sawhead elevation motor	1HP
Feed drive motor	3 HP
Table height from floor	1020 mm
Dust hood outlet daimension of each head	Ø 150 mm(6”)x2
*All specification and design characteristics shown in this catalogue are subject to change without prior notice
