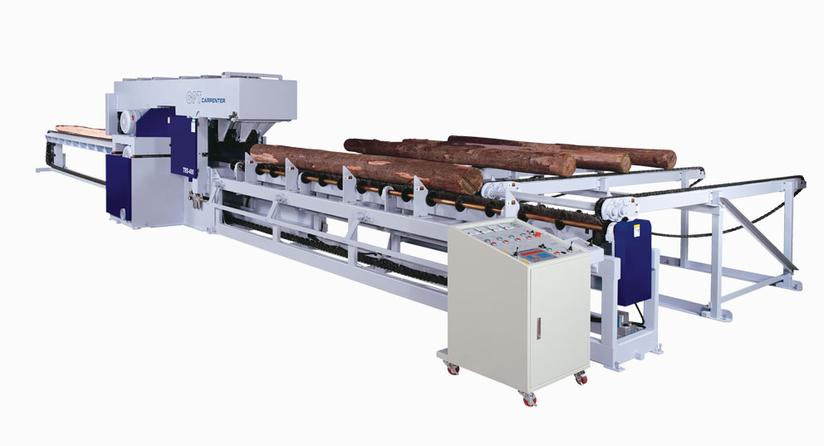

SMALL LOG TRIMMING MACHINE MODEL TRS-400615

Add to Compare

Add to Wishlist

TRS-400/615

SMALL LOG TRIMMING MACHINE

A profitable performer for small log trimming.

Quality features create great trimming value.

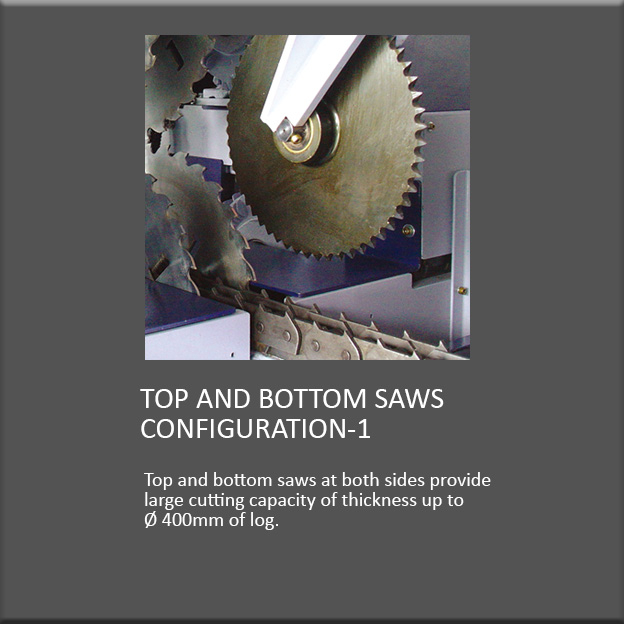

*Maximum cutting capacity for log diameters up to 400mm(TRS-400),

600mm(TRS-615)

*Suited for trimming and sizing log at the same time.

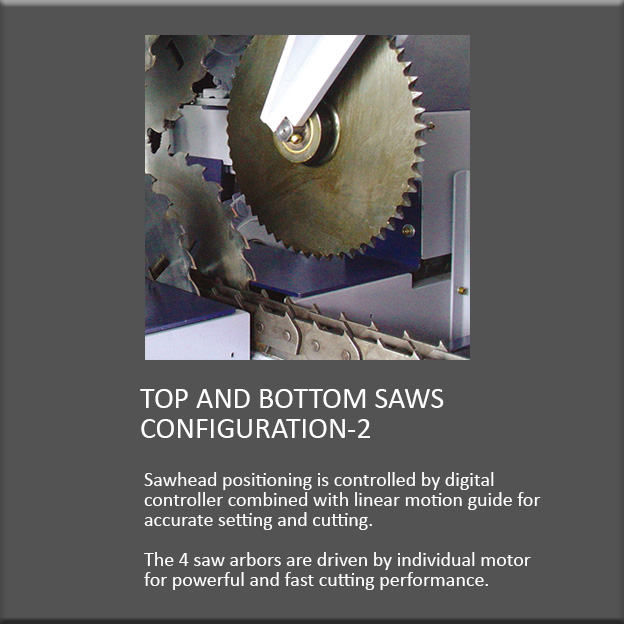

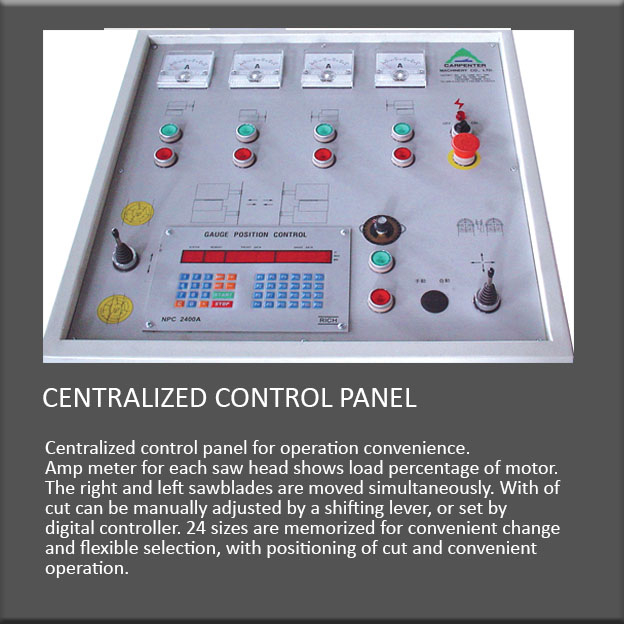

*Digital controller and linear motion guide provides accurate saw blade positioning and cutting.

*Variable chain conveyor feed speed makes the machine ideal for cutting soft and hard materials.

*TRS-400 : Sawblade type

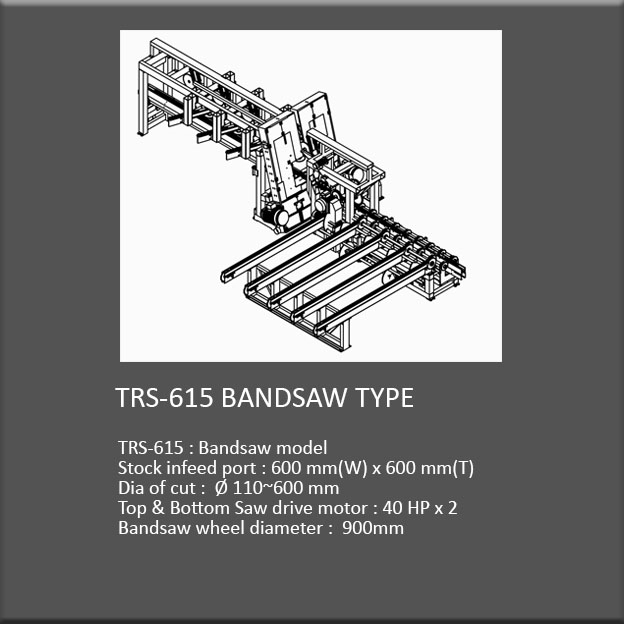

TRS-615: Bandsaw type.

*High horsepower drive on each sawhead gives heave duty cutting capability.

*Simultaneous movement of both right and left sawblades/bandsaw for convenient setup.

MODEL	TRS-400/615
Stock infeed port (WxT)	400x400mm / 600x600mm
Max. dia of cut	Ø 400 mm / Ø 600 mm
Min. dia of cut	Ø 110 mm
Feed speed (Variable)	6~24 M/min

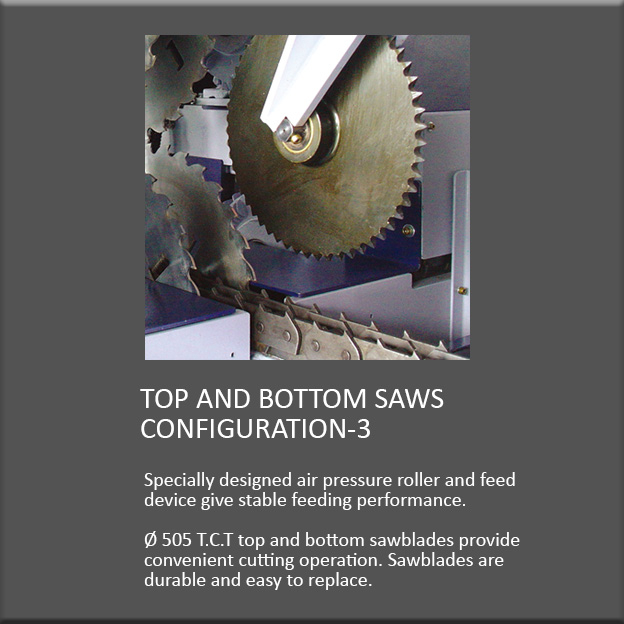

Saw blade diameter (TRS-400)	Ø 20” (505 mm)
Saw arbor diameter (TRS-400)	Ø 40 mm
Top & Bottom Saw Drive motor (TRS-400)	25 HP x 2.30 HP x 2
Bandsaw blade size (TRS-615)	100x6500mm
Bandsaw wheel diameter (TRS-615)	Ø 900 mm
Bandsaw drive motor (TRS-615)	40 HP x 2
Log rolling motor	1/4 HP
Feed motor	3 HP
Dust hood outlet diameter	6” x 4
Air pressure	4~6 kg/cm2
Saw adjustment motor	1 HP
Machine dimensions (L x W x H)(TRS-400)	7450 x 2300 x 2400 mm
Machine dimensions (L x W x H)(TRS-615)	11500 x 6300 x 2900 mm
*All specification and design characteristics shown in this catalogue are subject to change without prior notice
