ROLLER COATER & UV CURING TSRB-201B+201W

Add to Compare

Add to Wishlist

Features ;

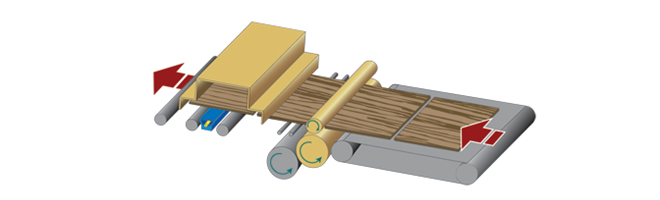

-The roller coater is designed for coating backside of workpiece.

-Air operated dual diaphragm pump features no sparking , is safe , and has no air pollution problem.

-Conveyor belt speed is adjustable in the range of 10~20 M/min.

-Easy to operate. The operator only needs to place workpieces on the conveyor belt without the need of an experienced technican.

MODEL	TSRB-201B+201W
Max. width of coating	610 mm
Min. length of coating	300 mm
Workpiece thickness range	2~50 mm
Conveyor belt speed	10~20 M/min
Coating rollers size (mm)	Ø 152 x 620
Smoothing rollers size (mm)	Ø 100 x 620
Conveyor belt motor	0.75 KW
Pump ( air diaphragm pump)	3 / 8 “
*All specification and design characteristics shown in this catalogue are subject to change without prior notice
