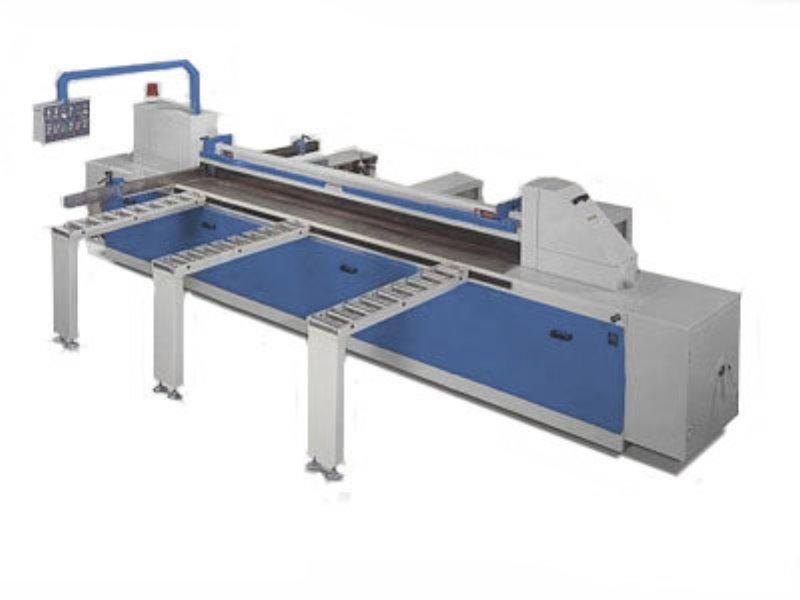

PANEL SAW

MODEL		RH-TPS8	RH-TPS10	RH-TPS12
CAPACITY	Maximum cutting length	2600 mm	3200 mm	3800 mm
	Maximum cutting dept	80 mm
MAIN SAWBLADE	Main sawblade diameter	Ø 355 mm
	Arbor diameter	Ø 1”
	Main blade speed	4800 RPM
SCORING DAWBLADE	Scoring sawblade diameter	Ø 160 mm
	Arbor diameter	Ø 1”
	Scoring blade speed	6500 RPM
MOTOR	Main sawblade motor	13 HP
	Saw carriage drive motor	3 HP
SAW CARRIAGE	Forward speed	12-16-21-26 M/min
	Return speed	24-32-42-52 M/min
Machine size		206” x 132” x 72”	230” x 132” x 72”	253” x 132 “ x 72”
Packing size		216” x 40” x 43”	232” x 40” x 63”	260” x 40” x 63”
Net weight		2200 kgs	2400 kgs	2600 kgs
Gross weight		2600 kgs	2900 kgs	3200 kgs
*All specification and design characteristics shown in this catalogue are subject to change without prior notice
