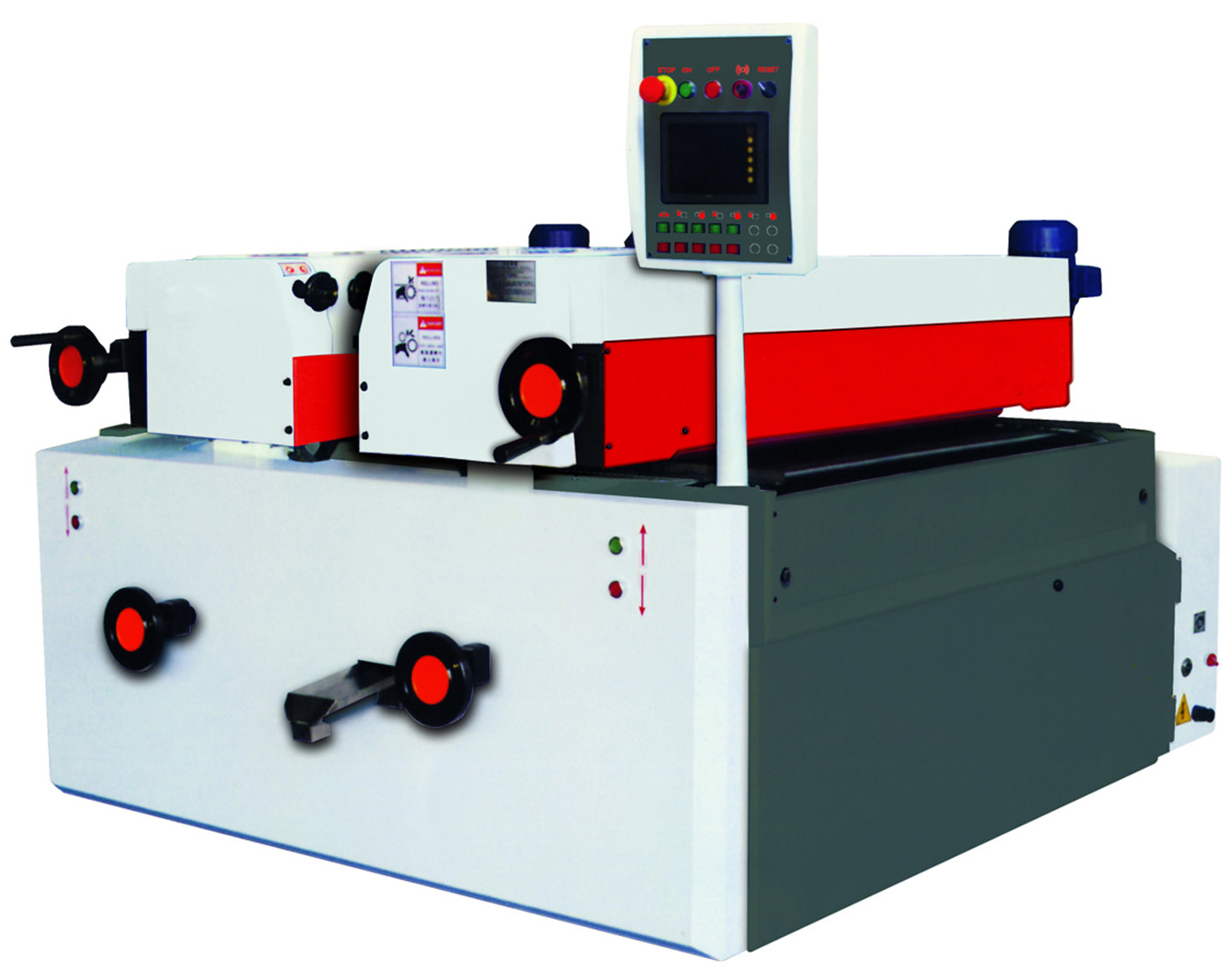

ROLLER COATER TS-W2TA-T – TS-W5TA-T

Add to Compare

Add to Wishlist

TS-W4TA-T　(ROLLER COATER)

APPLICATIONS：

Flat coating with UV base / surface,PU ,NC and water-based lacquer for floor/ Furniture / wood slice /glass / wall plane / tile /plywood and so on.

Features

-This machine is aoolied for flat coating, providing workpieces of smooth finishing and consistent colot.

-Each roller is independently controlled by frequency inverter.The smoothing roller speed and pressure are adjustable, ensuring perfect coating on workpiece.

-The application head is supported by the exclusively designed dovetailed support system.

-Workpiece is fed through a conveyor belt that features automatic positioning.

-Cleaning scrapers can be conveniently controlled from outside without need to raise the grid guard.

-Rollers are easy to replace

-Double air diaphragm pump does not create sparks, while ensuring operational safety and is air-pollution-free.

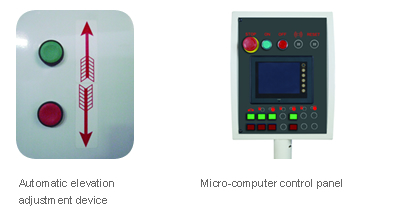

-The powered elevation design combined with limit switch provides over-travel protection. In case over-travel occurs, power shuts off automatically.

-The machine is available to operate with an extra large infeed roller converyor.

Description

MODEL	TS-W2TA-T	TS-W3TA-T	TS-W4TA-T	TS-W5TA-T
Maximum width of coating	610 mm	920 mm	1290 mm	1650 mm
Minimum length of coating	300 mm	300 mm	300 mm	300 mm
Workpiece thickness range	2 ~ 80 mm	2 ~ 80 mm	2 ~ 80 mm	2 ~ 80 mm
Conveyor belt speed	10 ~ 20 M/min	(Other speeds are available)
Coating rollers sizes(mm)	Ø 205(250) x 780	Ø 205(250) x 1100	Ø 205(250) x 1450	Ø 250 x 1800
Smoothing roller size(mm)	Ø 150(175) x 780	Ø 150(175) x 1100	Ø 150(175) x 1450	Ø 175 x 1800
Coating rollers motor	0.75 KW	0.75 KW	1.5 KW	1.5 KW
Smoothing roller motor	0.37 KW	0.37 KW	0.75 KW	0.75 KW
Conveyor belt motor	0.75 KW	0.75 KW	1.5 KW	1.5 KW
Elevation motor	0.18 KW	0.18 KW	0.18 KW	0.37 KW
Pump (air diaphragm pump)	1 / 2 “	1 / 2 “	3 / 4 “	3 / 4 “
Machine dimensions(mm)	1820 x 1770 x 1440	1820 x 2100 x 1440	1820 x 2385 x 1440	1820 x 2670 x 1440
*All specification and design characteristics shown in this catalogue are subject to change without prior notice
