ROUND ROD MILLING CF-80

Add to Compare

Add to Wishlist

Product Description

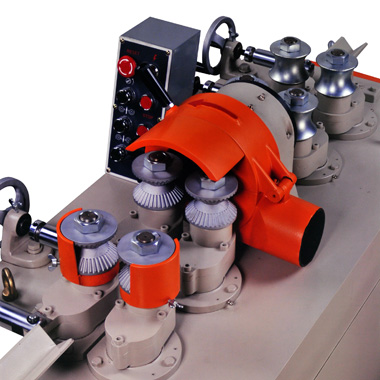

Round Pole Milling Machine

Model : CF-80

Two sets in feed and out feed rollers increase feed power

Especially for feeding long work pieces.

-Round Pole Milling Machine, designed for cutting stick from square into round rod, with capacity form Ø10 to 79mm in diameter.

-Suitable for material as wood, rattan, acrylic and similar material.

-4cutting feed speeds to suit the various materials.

-Maximum safety is guarantted by such features as feed rolls guard, fully enclosed transmission parts.

-Cutterhead does not start while cutterhead cover is opened.

-Two sets infeed and out feed rollers, increase the feed power, especially for long work pieces. (CF-80R8)

-Patented feed rolls guard NO. 37270

MODEL	CF-80
Range of working diameter	Ø 10 to Ø 79 mm
Range of working length	300 mm ~ unlimited
Drive motor	10HP
Feed motor	2HP
Cutterhead speed	3400 RPM
Range of feed speed	6/8/10/12 m/min (4 speeds)
Chip chute diameter	Ø 100/mm(Ø4”)
Machine size ( L x W x H )	900 x 690 x 910 mm
Machine size ( L x W x H )	990 x 730 x 1150 mm
Net weight	370 kg
Gross weight	430 kg
*All specification and design characteristics shown in this catalogue are subject to change without prior notice
