WOOD HYDRAULIC PUSHER

Add to Compare

Add to Wishlist

SL-635 / SL-1300

WOOD CRUSHER

HYDRAULIC PUSHER

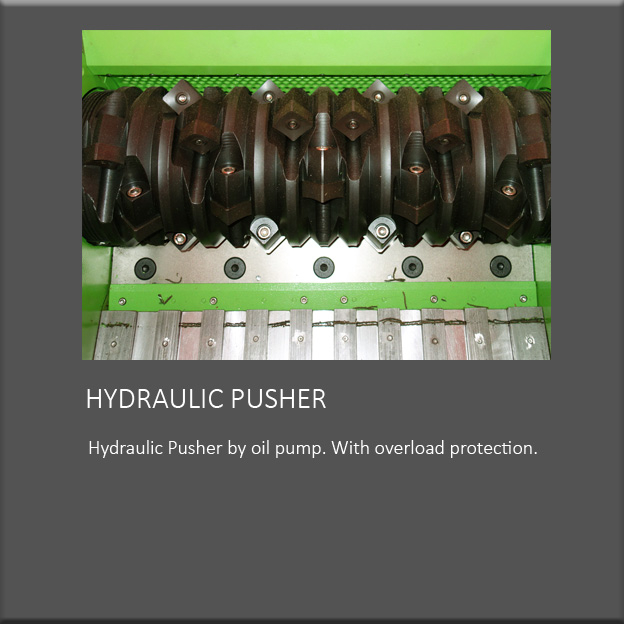

*HYDRAULIC PUSHER : Hydraulic Pusher by oil pump. *For reuse of waste wood.

*Ideal for waste wood, MDF and particle board and waste pallet crushing. Rigid cutterhead can cut off the pellet nails.

*The rigid cutterhead allows for heavy duty crushing and maximum durability.

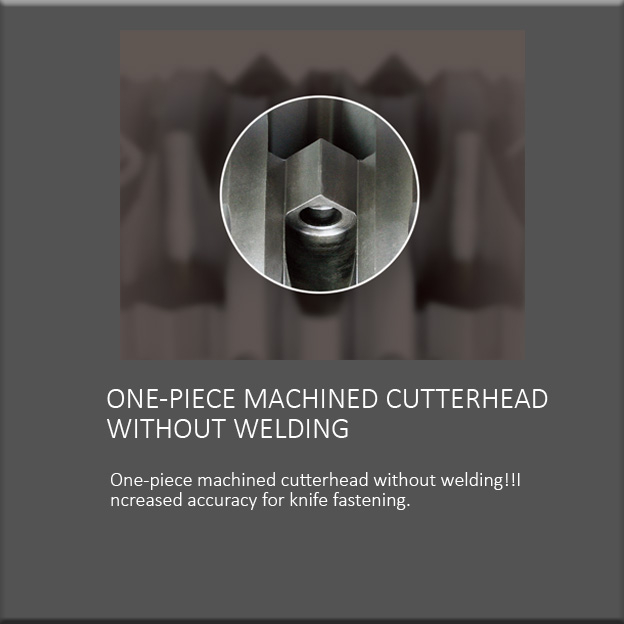

*One-piece machined cutterhead without welding. Increased accuracy for knife fastening.

*Protection from overload.

* Suitable for both long and short piece.

*Max. infeed wood length : 800mm(SL-635)/1200mm.(SL-1300)

MODEL	S-400W
Power	25 ~ 50 HP
Hopper opening	W390 x H100 mm
Cutterhead Dia.	Ø252 mm

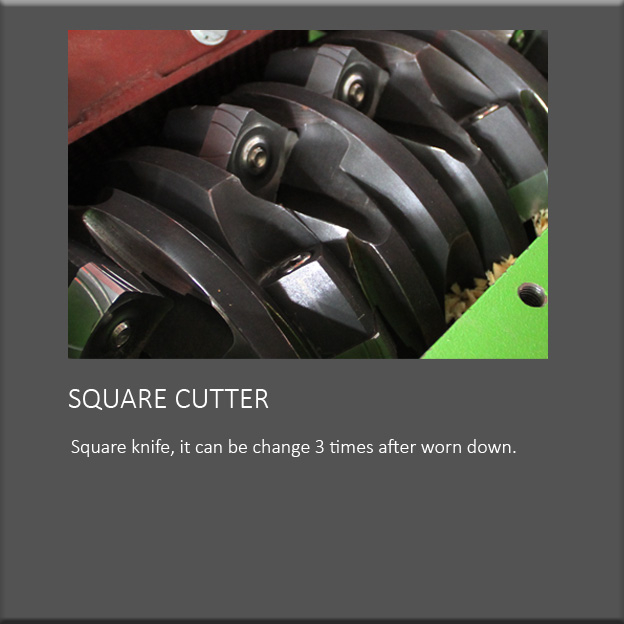

Knives	18+4 pcs
Cutterhead rpm	680 rpm
Feeding roller motor	1HP x 2

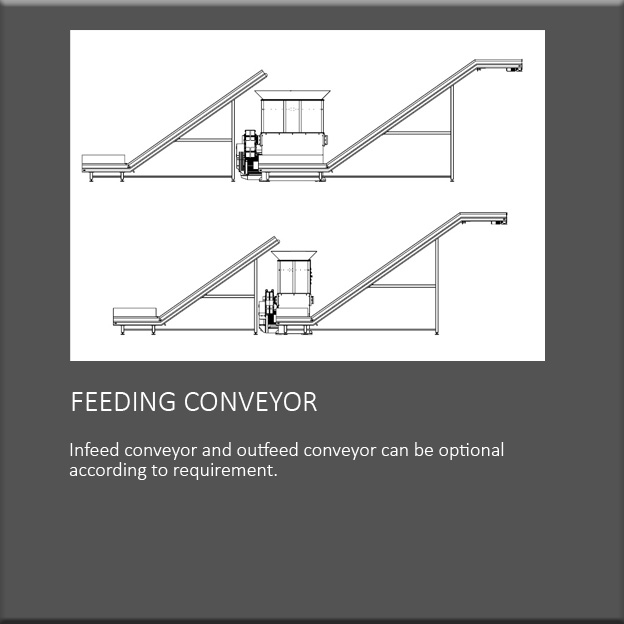

Infeed belt	2.5 M is standard. Other sizes can be optional

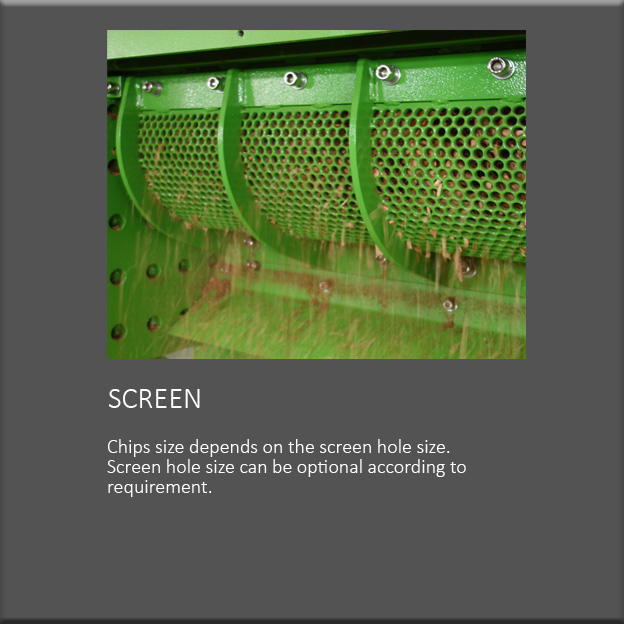

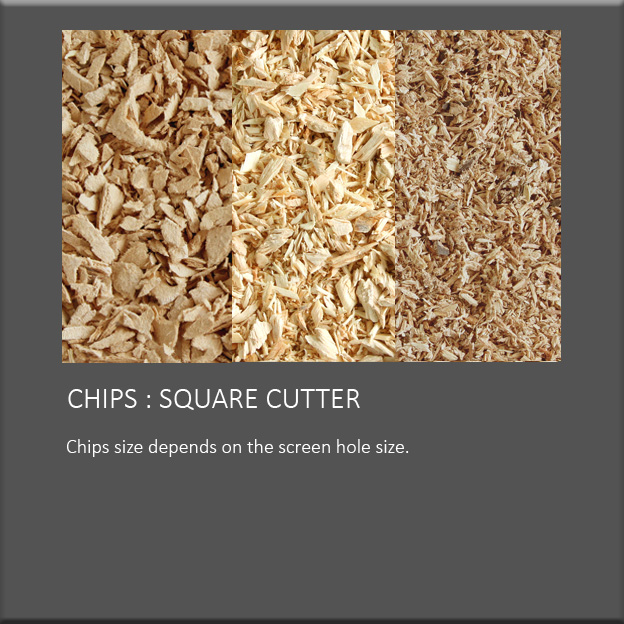

Screen size	12 mm is standard. Other sizes can be optional
Dust hood	Ø200 mm
*All specification and design characteristics shown in this catalogue are subject to change without prior notice
